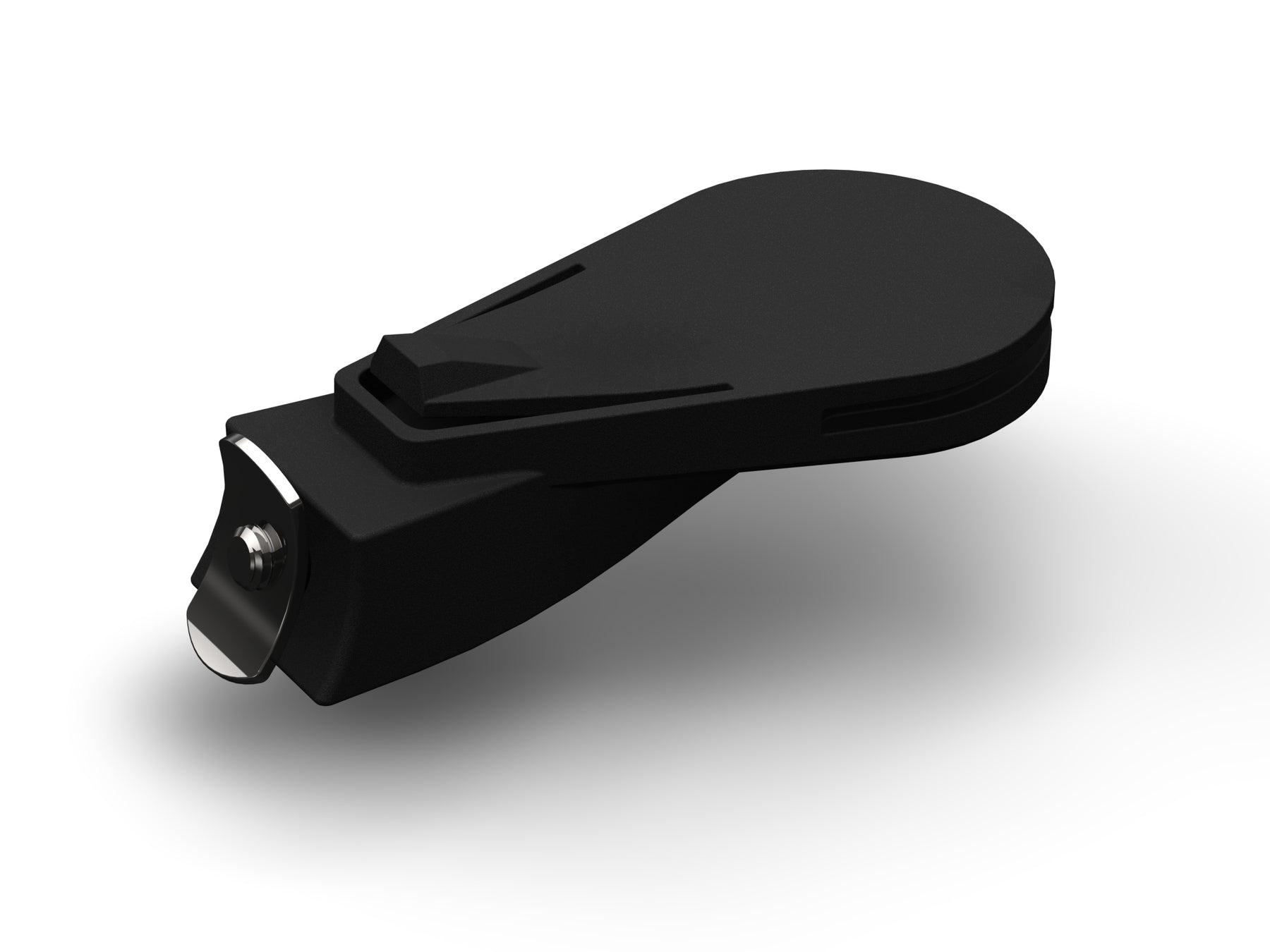

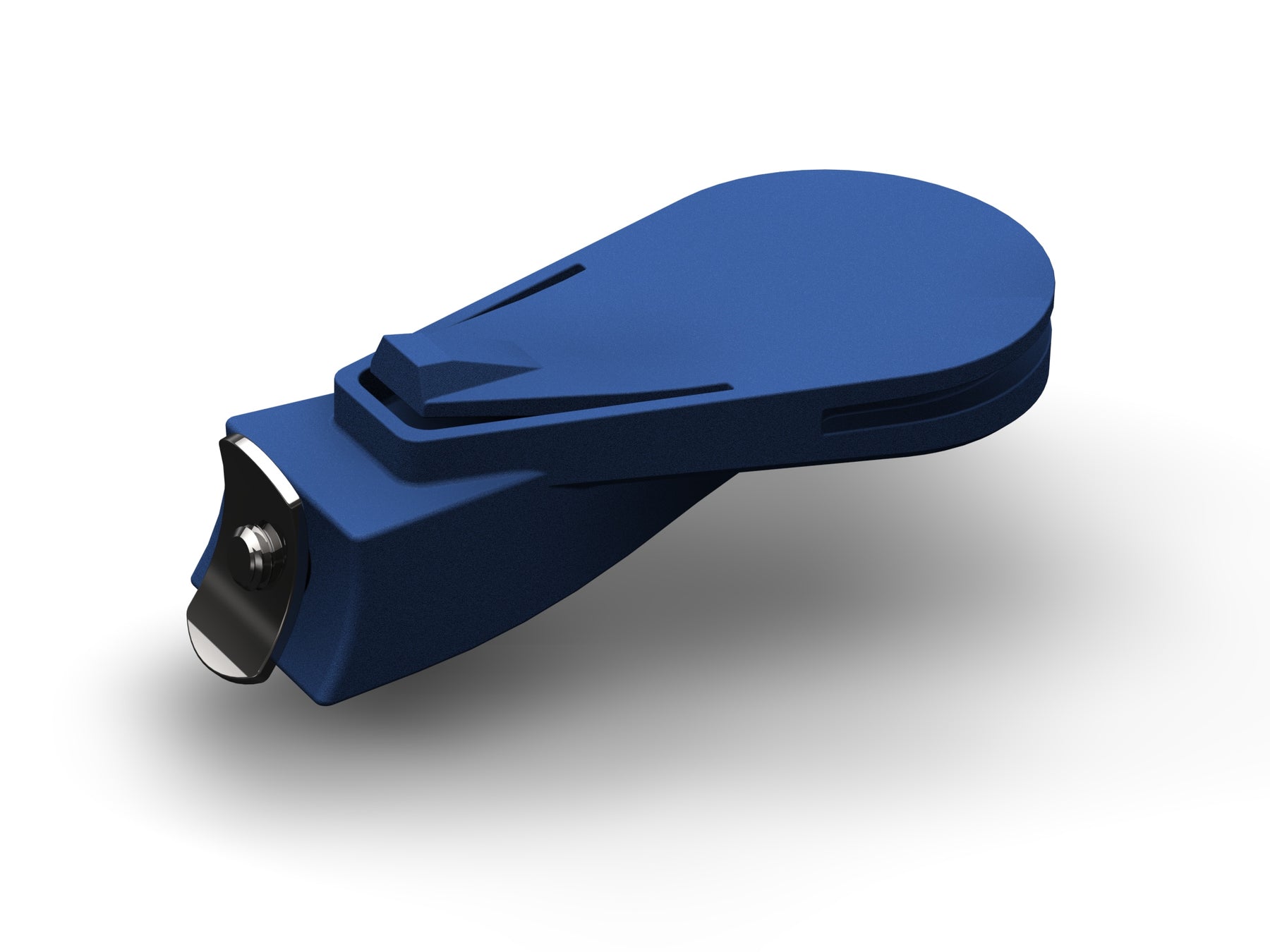

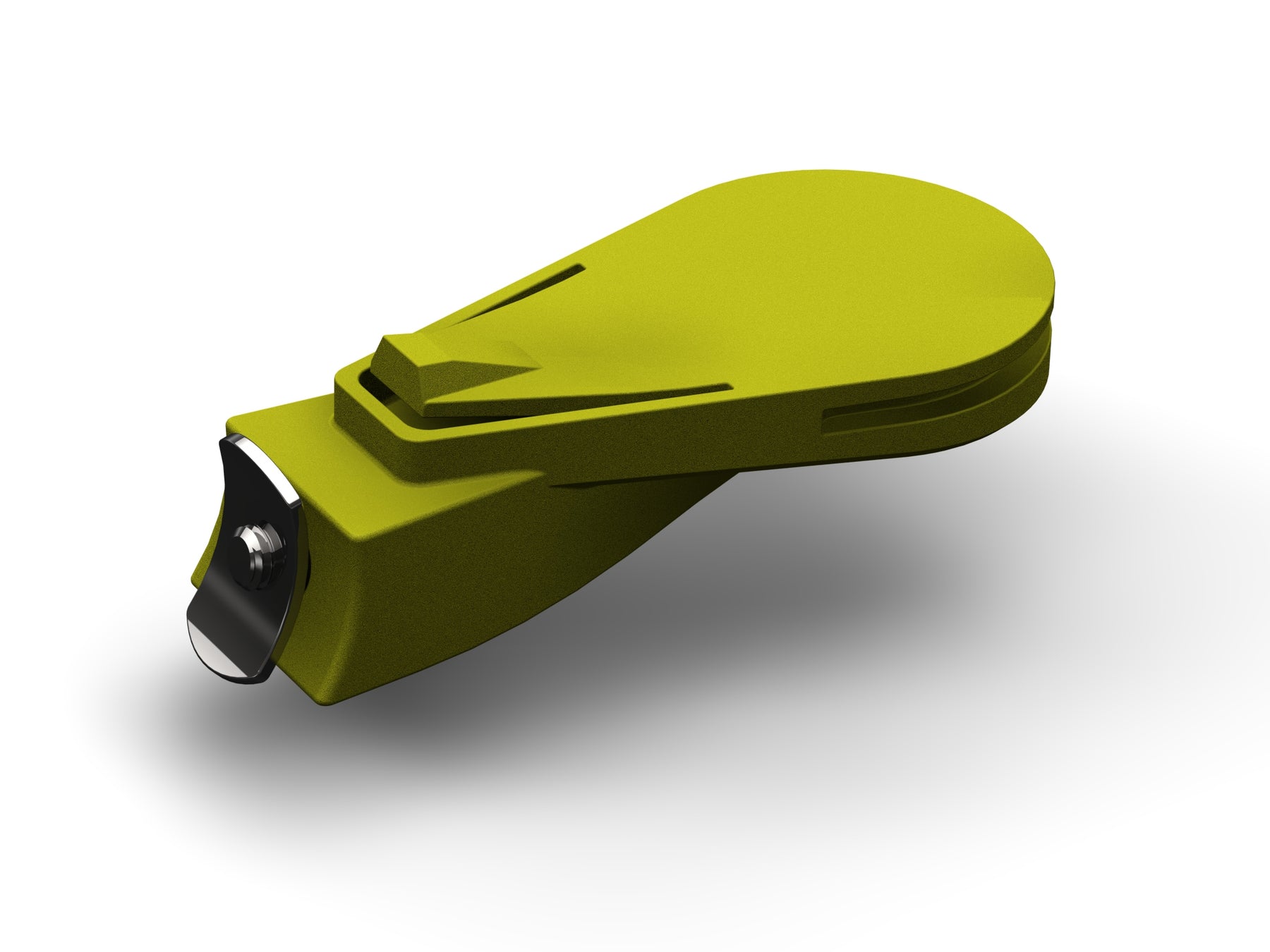

MagCAD Hammerhead Karoo 2 Direct Mount
A Hammerhead Karoo 2 computer mount that attaches to the faceplate of compatible direct mount stems such as Fizik, Cervelo and 3T.
What's Included

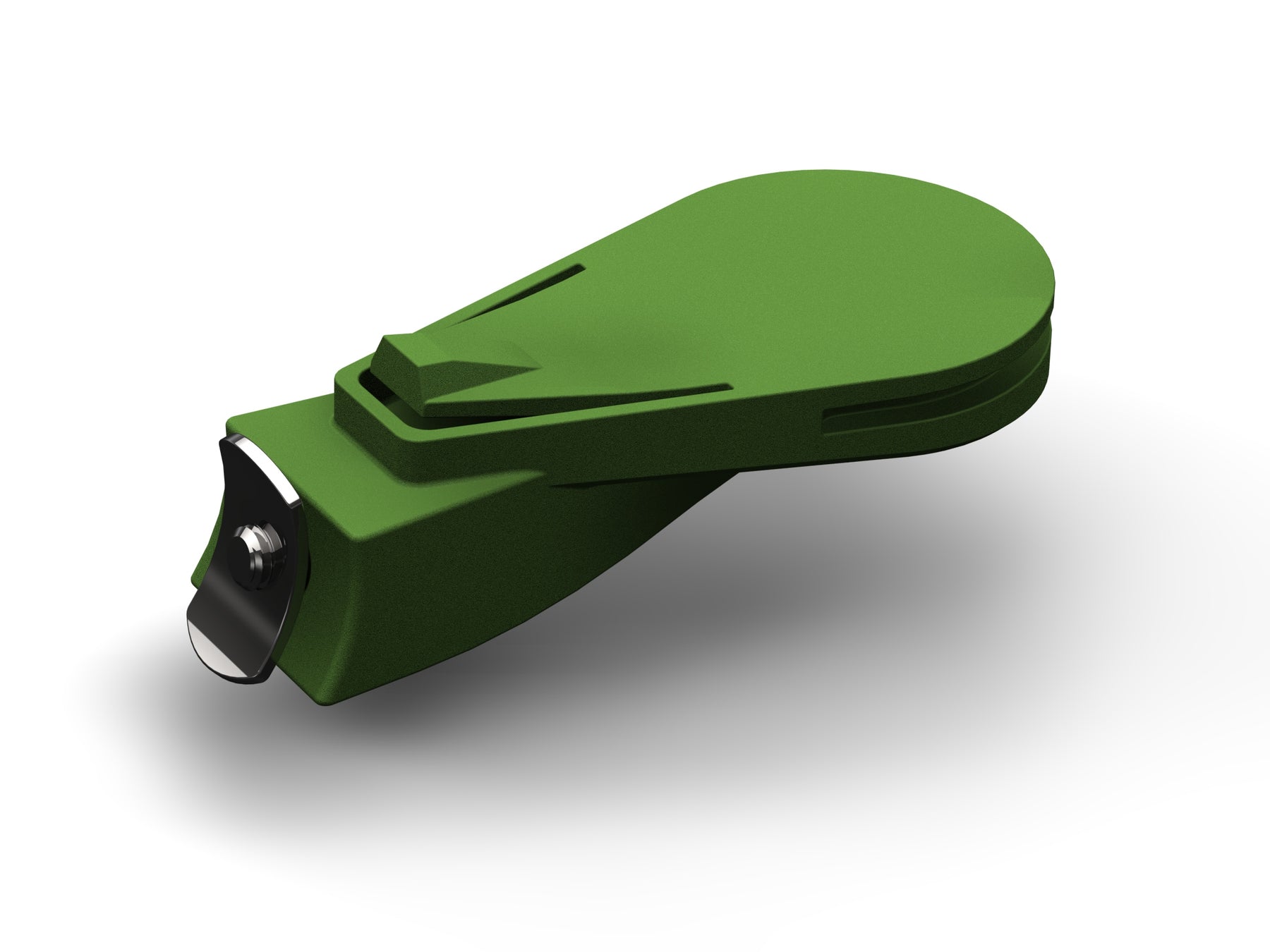

1x 3D printed mount, 1x M5x16mm cap screw, 1x M5 tee nut.
The Hammerhead device and stems pictured are for reference only and not included.
Overview

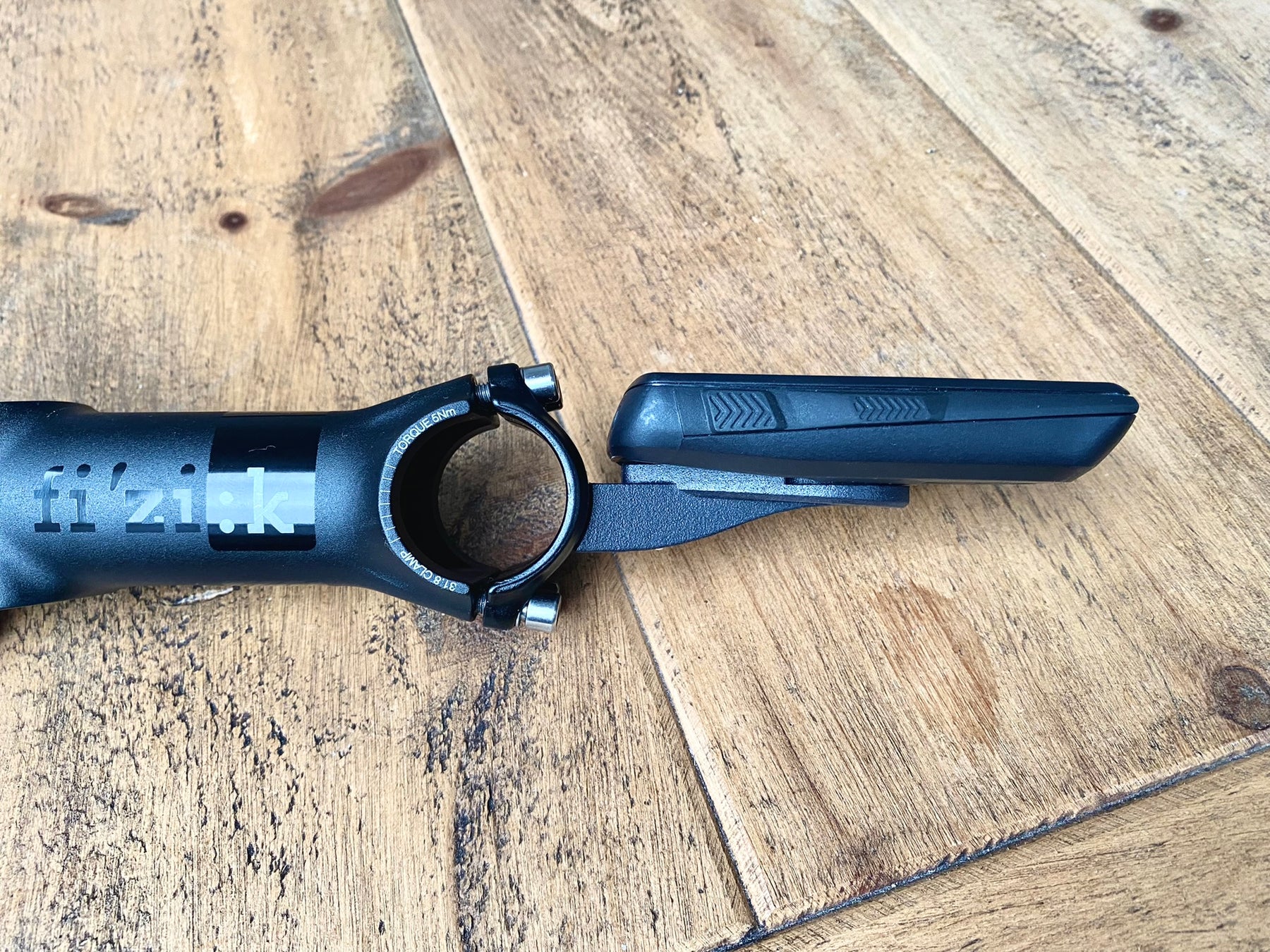

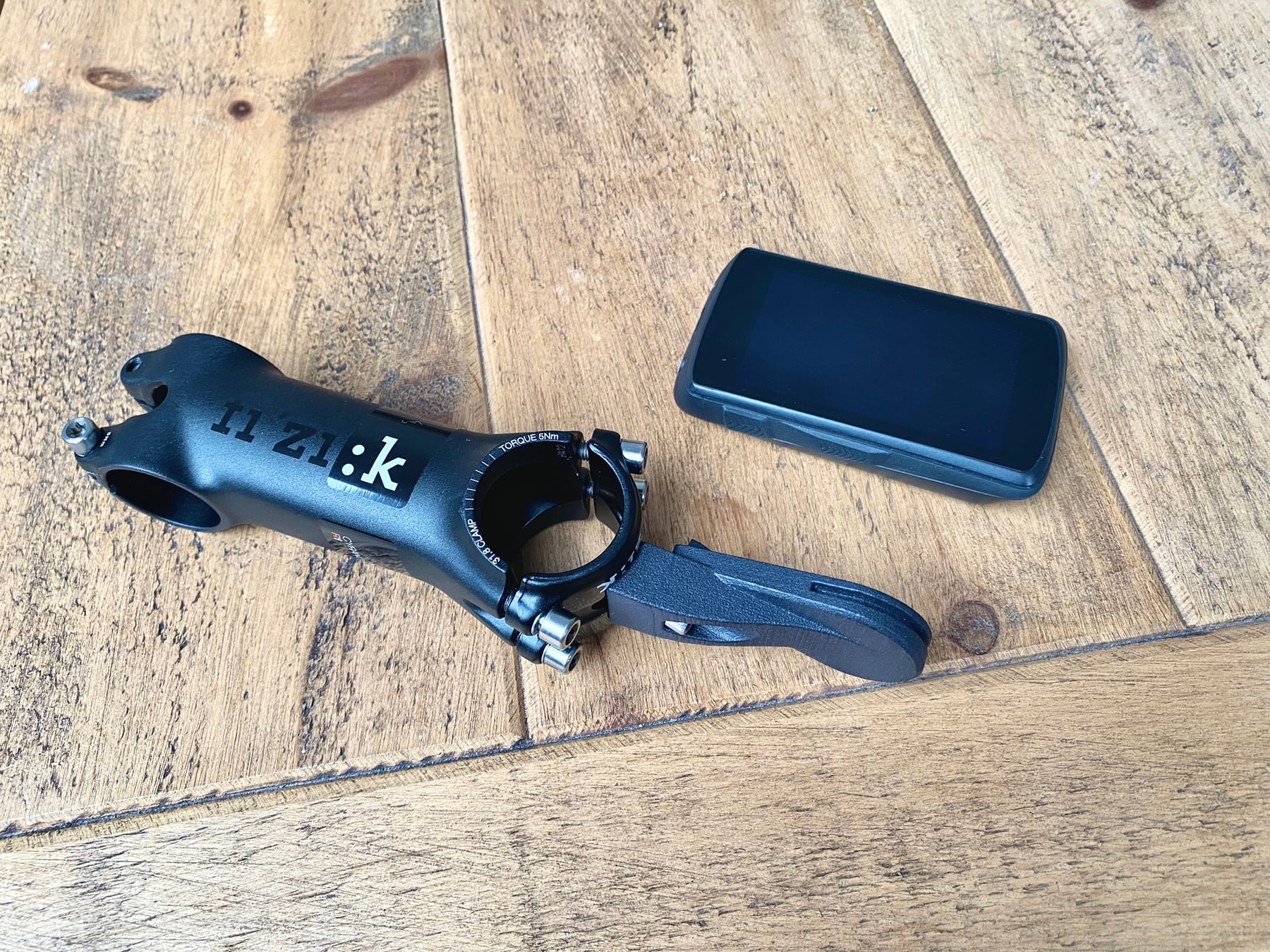

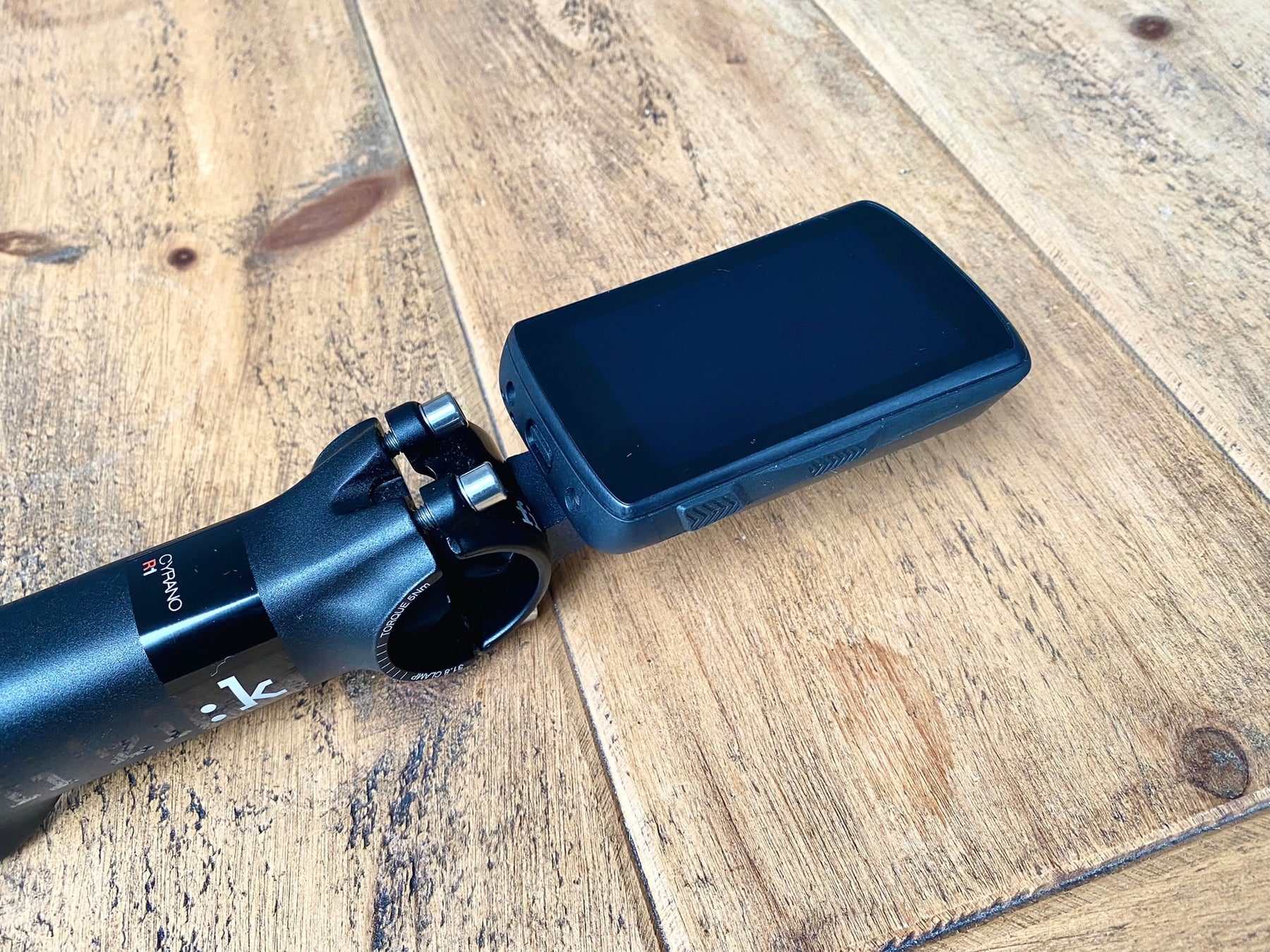

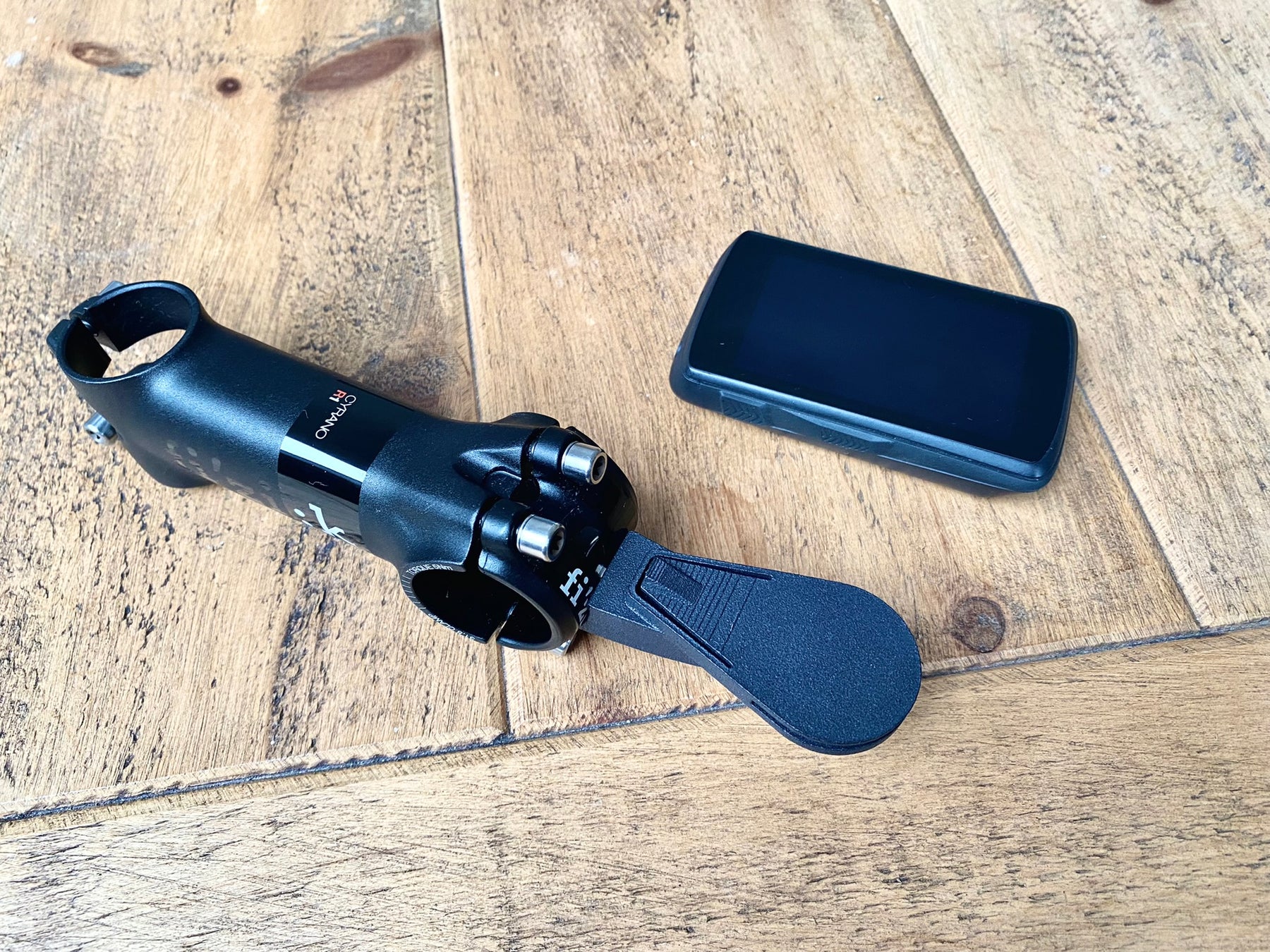

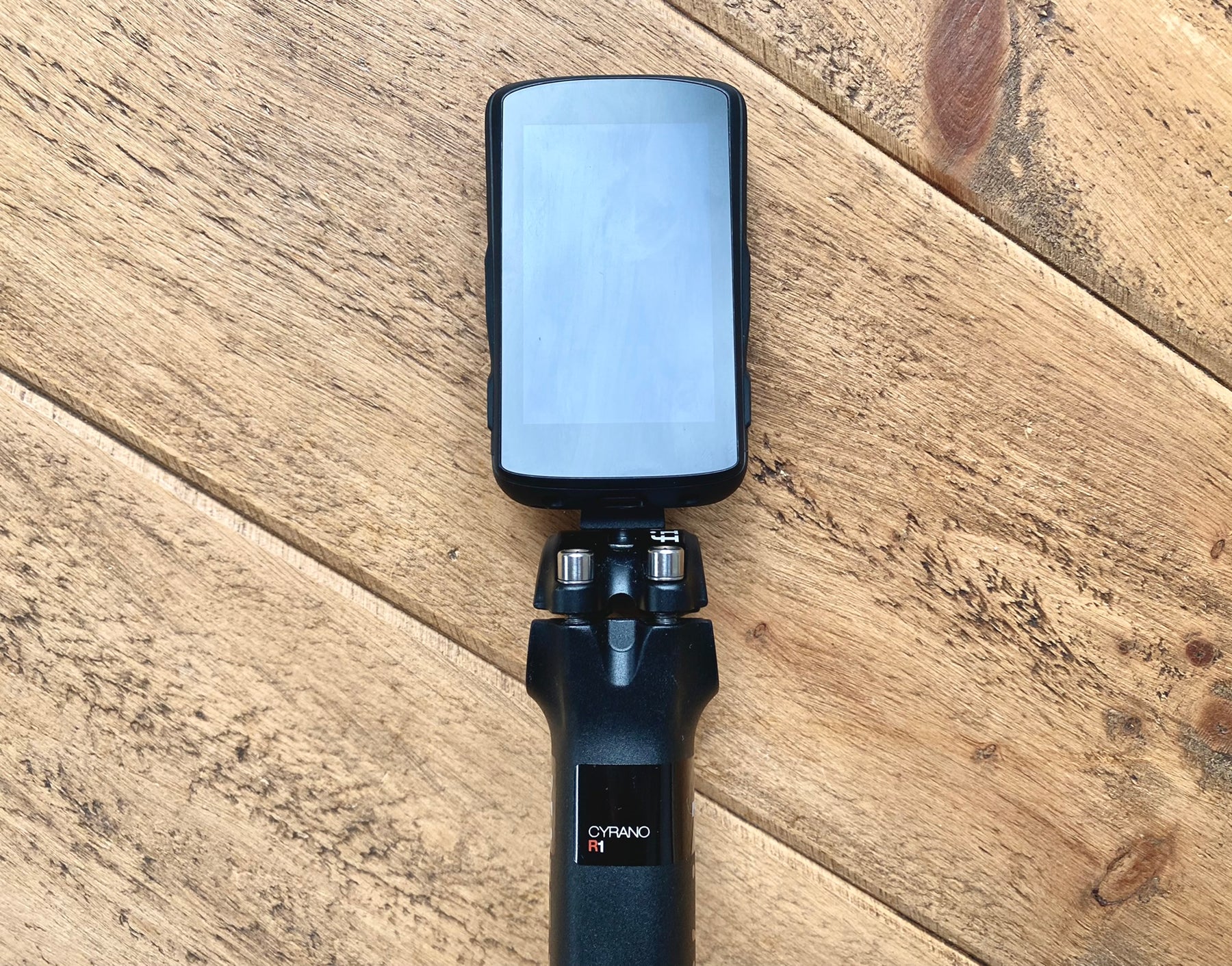

Mount your Hammerhead Karoo 2 neatly in front of your handlebars and compatible direct mount stem. The Fizik stem pictured has a specially design slot in the faceplate that allows a tee nut to sit inside, providing a secure point to attach a computer mount.
Application
Fitting the MagCAD mount is a simple process. Should you require any further clarification to the below please get in contact.
- Remove the faceplate from your stem.
- Insert the tee nut into the back of the faceplate.
- Bolt the mount through the faceplate and into the tee nut and loosely tighten.
- Pivot the mount to the centre of the slot and fully tighten.
- Check the mounting bolt is long enough to fully engage with the tee nut but not too long to protrude past the tee nut and foul your handlebars.
- Reassemble the faceplate to your stem following the stem manufacturers instructions.
- Loosen the mount and pivot to your preferred orientation before retightening.

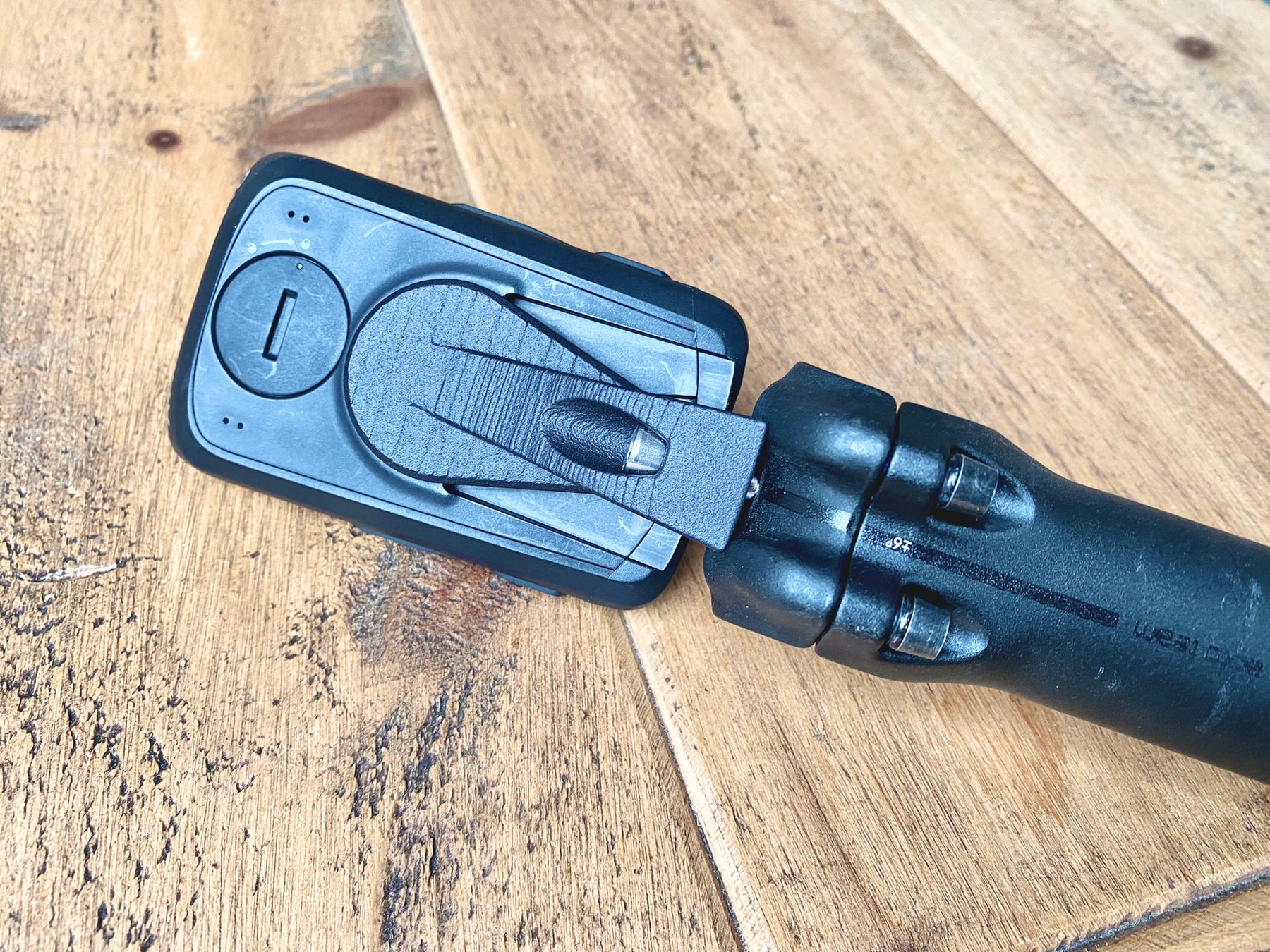

To attach your Hammerhead device simply follow the same procedure as with the OEM Hammerhead mount, pulling the device backward onto the mount with a slight twist to centre and locate it. You should here a positive click when the device is attached. We recommend using the tether that's supplied with your Hammerhead device just for extra security.
Compatible With:
The MagCAD Direct Mount is compatible with a number of stems. Listed below are those with which the fit and function has been confirmed and we will continue to add more as soon as we come across them. You're more than welcome to try with other stems and send us feedback.
- Fizik Cyrano stems.
- Cervelo Carbon C026 and Aluminium A027 stems.

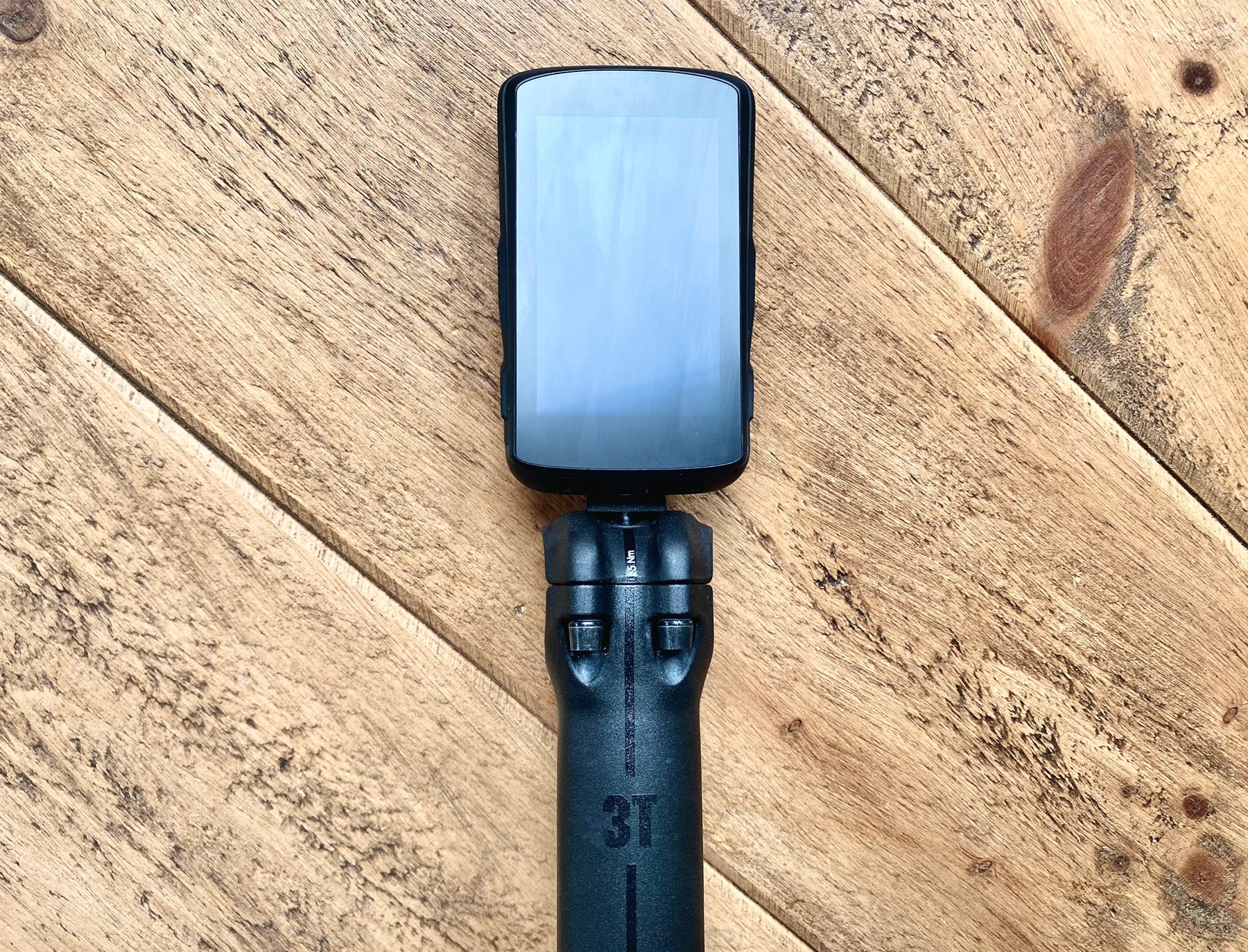

- 3T Apto Team stems.
- Felt AR Integrated stem.
Compatible with the below GPS computers.
- Hammerhead Karoo 2.
Specifications
- Weight: 15 grams (without hardware).
